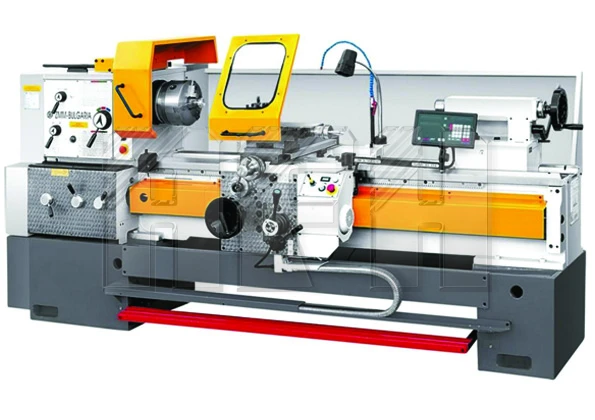

Buy INDUSTRIAL LATHES CU 500 X 1000 MT VAC

INDUSTRIAL LATHES CU 500 X 1000 MT VAC

INDUSTRIAL LATHES CU 500 X 1000 MT VAC

Center height250 mm

Swing over bed500 mm

Swing over cross slide300 mm

Swing in gap700 mmWidth of bed400 mm

Distance between centers1000 mm

Taper of main spindleDIN 55027, gr.11

Hole through spindle103 mm

Spindle speeds11,5 - 1400 rpm

Main drive motor11 kW

Number of feeds120

Longitudinal feed range0,04 - 12 mm/r

Cross feed range0,02 - 6 mm

Number of thread cuttings64

Thread cutting metric0,5 - 120 mm

Thread cutting Whitworth0,25 - 60 TPI

Thread cutting module0,125 - 30

ModuleThread cutting pitch1 - 240 DP

Cross slide travel315 mm
